Brand Name : Eceng
Model Number : YC
Certification : CE&SGS&ISO
Place of Origin : China
MOQ : 1set
Price : Negotiable
Payment Terms : L/C, T/T, Western Union
Supply Ability : 5 sets per month
Delivery Time : 45 working days
Packaging Details : FIlm pack
Clamping Force : 2900KN
Motor : PVC motor
color : blue/white
Opening Stroke : 620mmx620mm
Raw material : PS/PE/PP

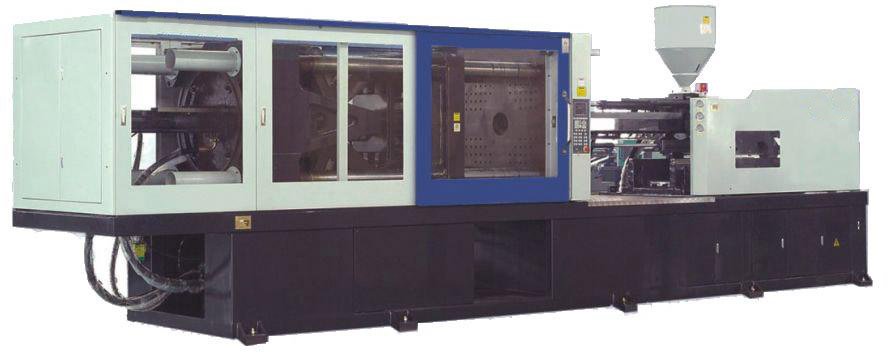

plastic crate injection molding machine/Plastic storage box making injection machine
1.Energy Saving Design
2.Making PET bottle preform
3.We provide hot runner mold
4.High pressure
Specification
| Item | A Type | B Type | C Type |
| Screw Diameter (mm) | 40 | 45 | 50 |
| Screw L/D Ratio (L/D) | 22.5 | 20 | 18 |
| Injection Volume (cm3) | 276 | 350 | 432 |
| Shot Weight (g) | 252 | 320 | 393 |
| Plasticizing Capacity (g/s) | 15.8 | 20 | 24.6 |
| Injection Rate (g/s) | 110 | 140 | 170 |
| Injection Pressure (MPa) | 214 | 169 | 137 |
| Screw Speed (rpm) | 0~180 | ||
| Clamping Force (KN) | 1680 | ||
| Toggle Stroke (mm) | 420 | ||
| Space Between Tie Bars (mm) | 460*460 | ||
| Mould Thickness Range (mm) | 180~500 | ||
| Injector Stroke (mm) | 120 | ||
| Pump Pressure (MPa) | 16 | ||
| Motor Power (KW) | 15 | ||
| Heater Power (KW) | 9.3 | ||
| Machine Dimension (L*W*H) (mm) | 4700*1450*1900 | ||
| Machine Weight (T) | 5 | ||

|
|
Energy Saving Injection Stretch Blow Molding Machine Preform Making PET Bottle Images |
